What Is A Plot Plan In Construction?

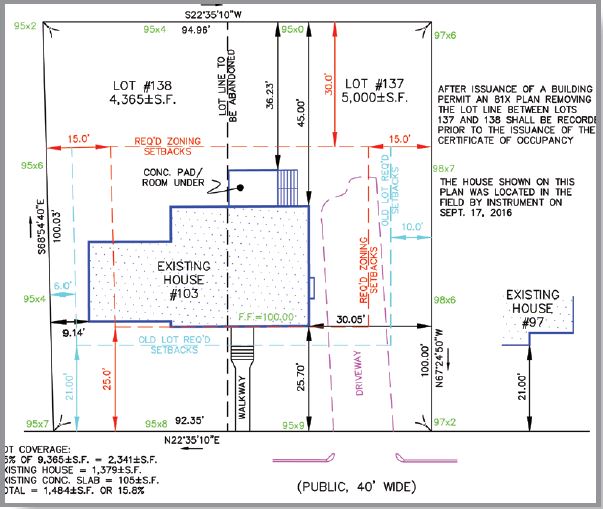

A plot plan, also known as a site plan or layout plan, is a detailed drawing that provides a comprehensive overview of a construction project's proposed layout on a specific piece of land. It serves as a crucial planning document that guides the design, development, and execution of the project.

Plot plans are essential for several reasons. They:

Define the project's boundaries and dimensions: They clearly indicate the limits of the construction site and the proposed building's footprint.
Show the location and orientation of structures: They specify the placement of buildings, roads, parking areas, walkways, and other structures within the site.
Depict existing and proposed infrastructure: They illustrate the location of existing infrastructure, such as utilities, drainage systems, and landscaping, as well as the proposed upgrades or additions.
Illustrate site features and topography: They provide a detailed representation of the site's topography, including contours, slopes, and natural features like trees or water bodies.
Guide construction activities: They serve as a roadmap for contractors and construction teams, helping them visualize the project layout and plan their activities accordingly.
Facilitate design review and approvals: They are often submitted to local authorities for review and approval, ensuring compliance with zoning regulations and building codes.

Plot plans typically include various elements, such as:

Property lines and dimensions: Boundaries of the construction site, measurements, and any easements or setbacks.
Building footprint and layout: Size, shape, orientation, and floor plan of the proposed structures.
Infrastructure details: Location of utilities, drainage systems, electrical lines, and access points.
Site features: Topography, contours, vegetation, and any existing structures or natural elements.
Landscaping: Proposed planting areas, walkways, and other landscaping elements.
Access and circulation: Driveways, parking areas, and pedestrian pathways.
Legend and notes: A key to symbols, abbreviations, and additional information relevant to the plan.

Plot plans are indispensable tools in construction projects. They provide a clear understanding of the project's design and layout, helping stakeholders visualize the project, make informed decisions, and coordinate construction activities effectively.
